Product details of the cnc machine for sale
Product Specification
Nearest port: Nansha, Yantian or Shekou Port in Guangdong Province China
Payment term: T/T, L/C
Quick Detail
cnc machine for sale is manufactured based on good materials and advanced production technology. It is stable in performance, excellent in quality, high in durability, and good in safety. Each raw material of JSWAY cnc machine for sale is carefully selected. We meet the quality standards as per the customer demands. cnc machine for sale is widely used in industries and suitable for the cutting and deep processing of all types of metal tubes. The product is popular in the market, meeting the requirements of customers.
Produktaj Informoj
Next, JSTOMI will present you with the specific details of cnc machine for sale.

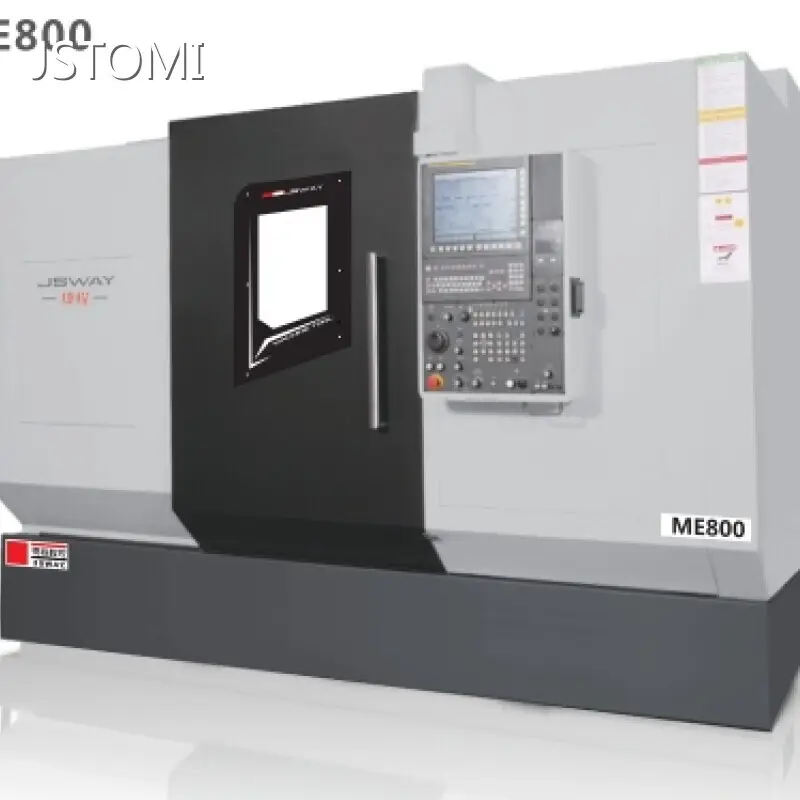

Multi-function lathe
Full functions: carving, turning, milling, drilling, and tapping
Complicated components (work piece) could be done in one go.
| Modelo Nr. | ME800 | MU800 | |
| Machine | Interpolate Y-axis, upper and lower power turret, dual spindle | Interpolate Y-axis, dual upper power turret, dual spindle | |
| Axes | X1/YS1/Z1 + X2/YS2/Z2 | ||
| Operating System |
SYNTEC 220TB Or
FANUC的OI-TF PLUS | ||
| Spindle | Spindle nose end | A2-6 | |
| Standard chuck (IN) | 8 | ||
| Maximum bar processing diameter (MM) | 52 | ||
| Maximum speed (RPM) | 4000 | ||
| Sub-spindle | Sub-spindle nose end | A2-5 | |
| Standard chuck (IN) | 6 | ||
| Maximum bar processing diameter (MM) | 45 | ||
| Maximum speed (RPM) | 4000 | ||
| Processing ability | Maximum machining length (MM) | 300 | |
| Precizeco | Positioning accuracy (MM) | 0.005 | |
| Re-positioning accuracy (MM) | 0.005 | ||
| Tools | Number of turntable turrets (set) | 2 | |
| Number of knives installed | 16 | ||
| Outer diameter of tool handle (mm) | 25 | ||
| Inner diameter of tool handle (MM) | 32 | ||
| Milling cutter speed (RPM) | 6000 | ||
| Milling cutter shank diameter | 1-20 | ||
| Travel | X1 axis (MM) | 225 | |
| YS1 axis (MM) | +-50 | ||
| Z1 axis (MM) | 265 | ||
| X2 axis (MM) | 225 | ||
| YS2 axis (MM) | +-50 | ||
| Z2 axis (MM) | 810 | ||
| B-axis travel | 800 | ||
| Movement rate (M/MIN) | 30 | ||
| Others | Size (LWH, approximately, MM) | 3300x2200x2200 | |
| Weight (approximately, KG) | 7800 | ||
